ASSASSIN 4S

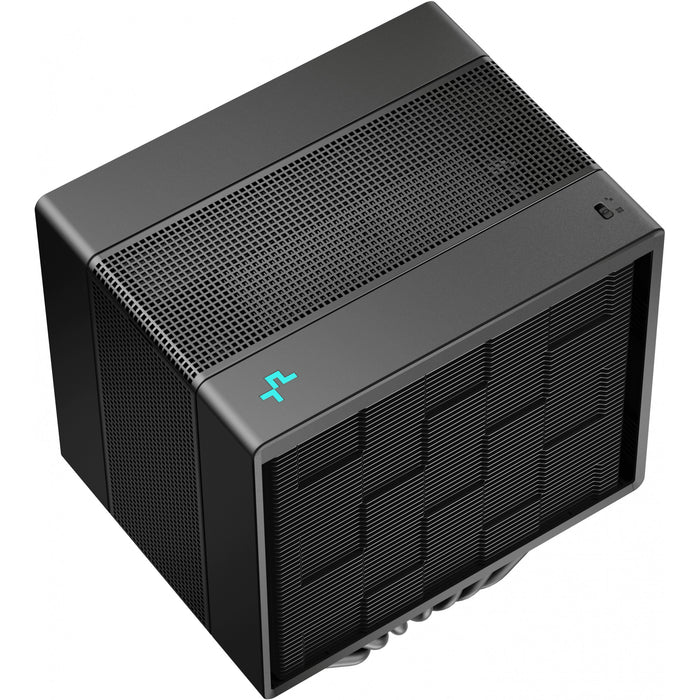

The ASSASSIN 4S provides exceptional performance and is armed with seven 6mm heat pipes and a redesigned 140mm FDB fan. The 4S models eliminate the rear 120mm fan, providing a slimmer, more symmetrical cooler.
ASSASSIN 4S
SOPHISTICATED ELEGANCE
BEAUTY IN SIMPLICITY

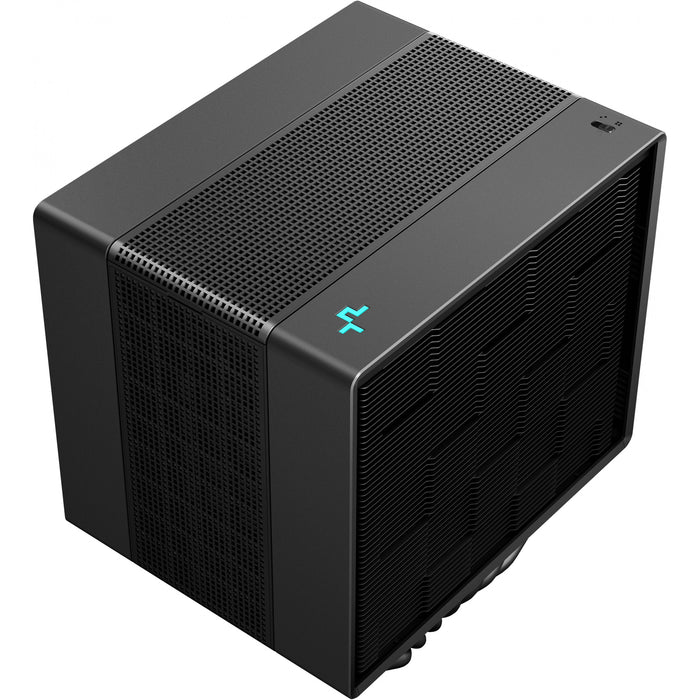

The elegant design of the ASSASSIN 4S is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
QUIET OR PERFORMANCE MODE
With a simple slide of a switch, the ASSASSIN 4S can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!

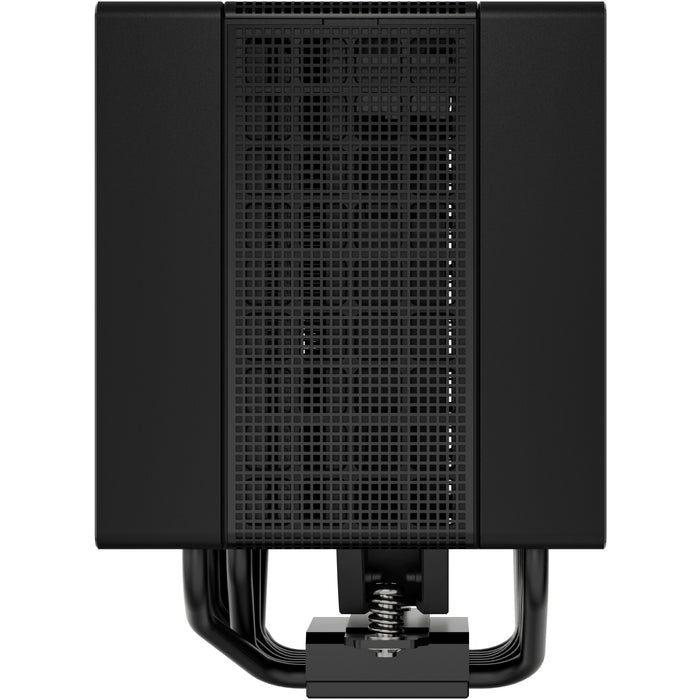

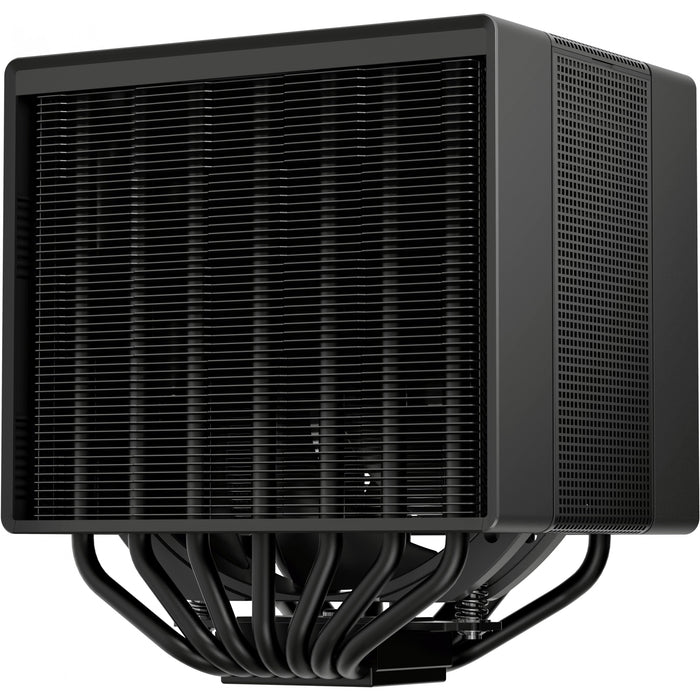

The shell of ASSASSIN 4S is clean, sleek, and helps channel air through the fin towers, while the slimmer profile provides unobstructed clearance for high-profile RGB RAM.
BE COOL, BE CALM

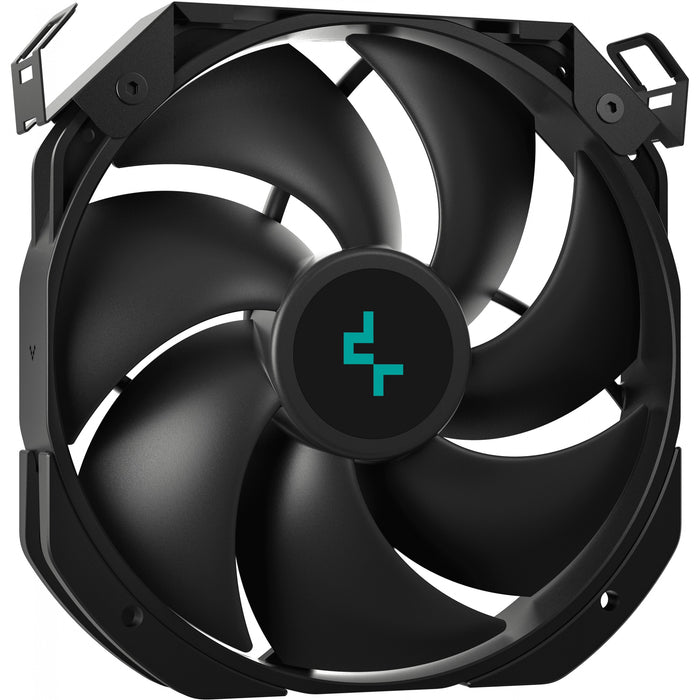

A key factor in the ASSASSIN 4S's extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN 4S comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN

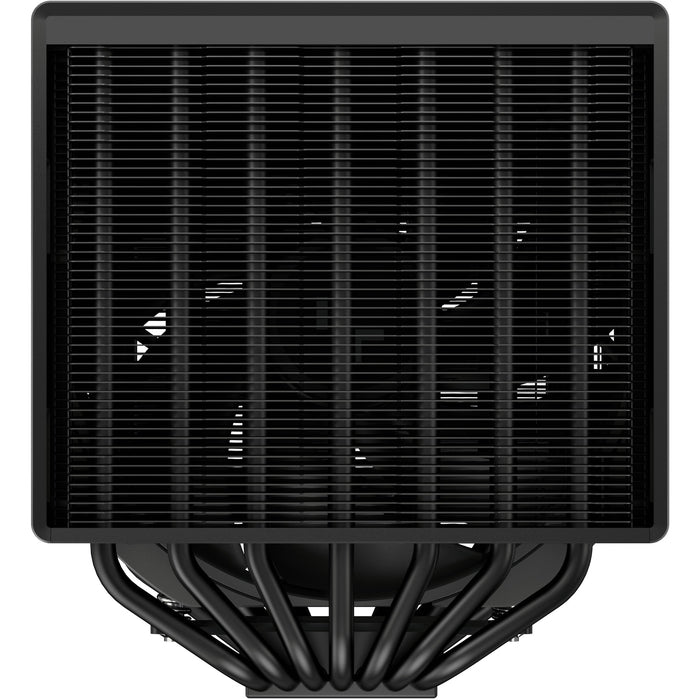

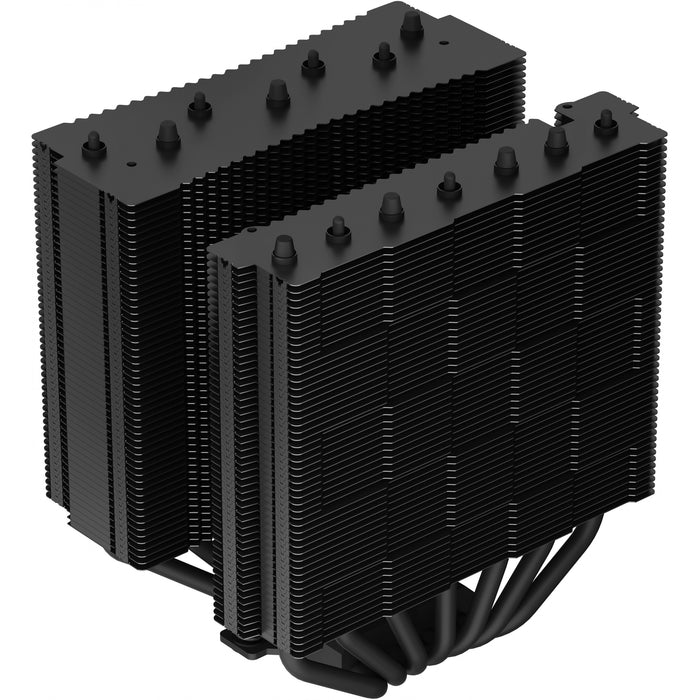

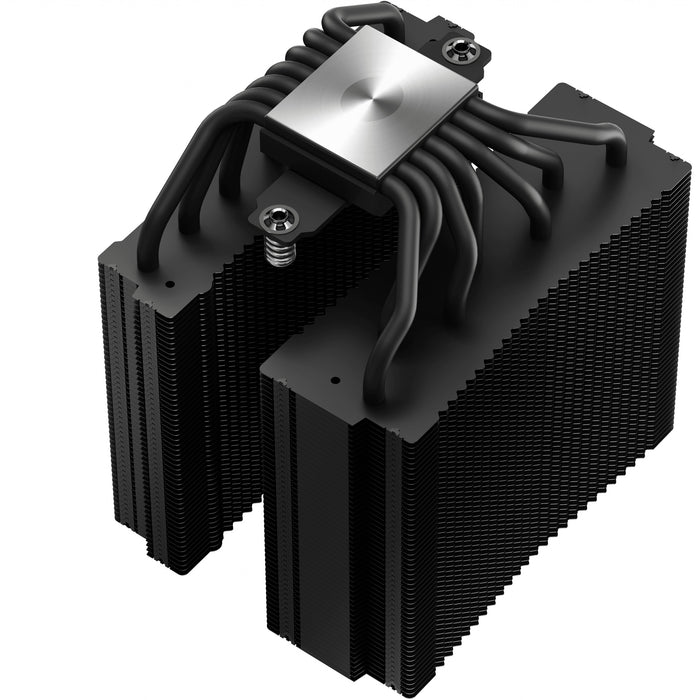

Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN 4S, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.
STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 14 cm
Maximum airflow: 61.25 cfm
Minimum air pressure: 2.46 mmH2O
Maximum air pressure: 3.76 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Fluid Dynamic Bearing (FDB)
Fan noise level (min): 22.6 dB
Fan noise level (max): 29.3 dB
Quantity per pack: 1 pc(s)
Fan speed (min): 500 RPM
Fan speed (max): 1800 RPM
Design
Product colour: Black
Number of fans: 1 fan(s)
Number of heat pipes: 7
Fan connector: 4-pin
Power
Power consumption (typical): 3.6 W
Rated voltage: 12 V
Fan power consumption: 2.4 W
Fan voltage: 12 V
Fan current: 0.2 A
Weight & dimensions
Width: 147 mm
Radiator width: 11 cm
Radiator depth: 14 cm
Radiator height: 16 cm
Depth: 116 mm
Height: 164 mm
Weight: 1.38 kg
Fan dimensions (W x D x H): 140 x 140 x 25 mm
Heat pipes diameter: 6 mm

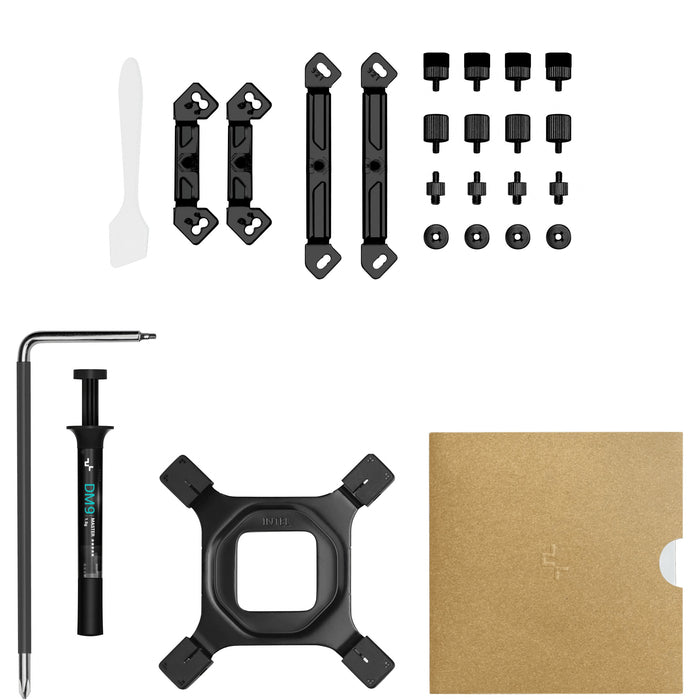

Packaging content
Package type: Box
Feature: Mounting kit
Feature: Screws included
Feature: CPU bracket(s)
Feature: Adapter frame included
DeepCool ASSASSIN 4S. Type: Air cooler, Fan diameter: 14 cm, Minimum air pressure: 2.46 mmH2O, Maximum air pressure: 3.76 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Width: 147 mm, Depth: 116 mm, Height: 164 mm. Product colour: Black
Deepcool
MBR CODE - R-ASN4S-BKGPMN-G
EAN - 6933412728696
