WINDFORCE
COOLING SYSTEM

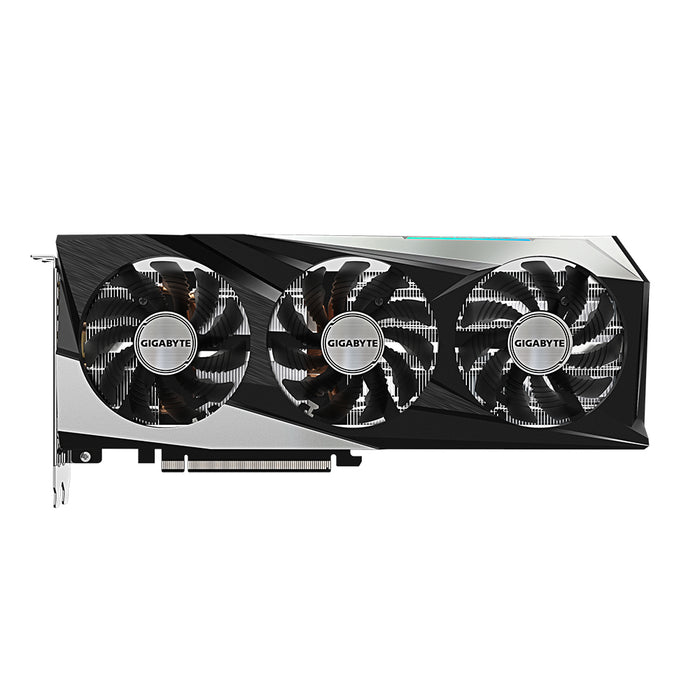

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

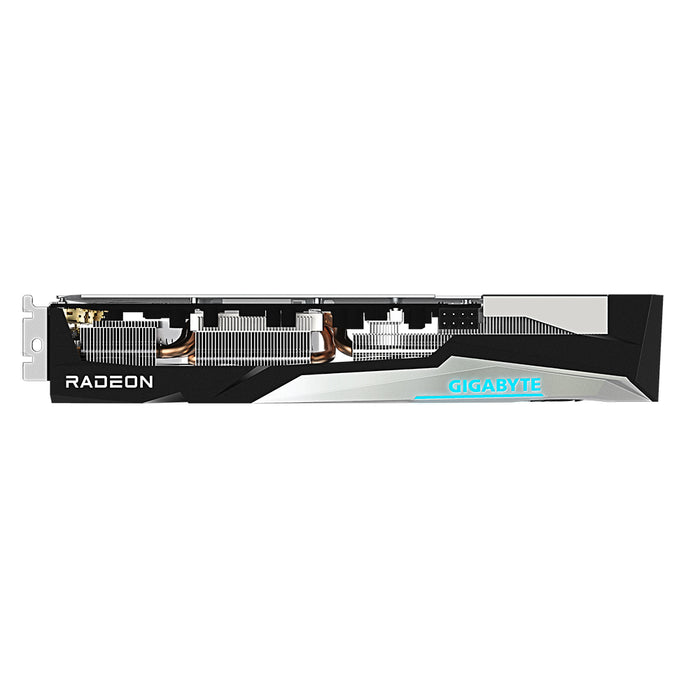

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

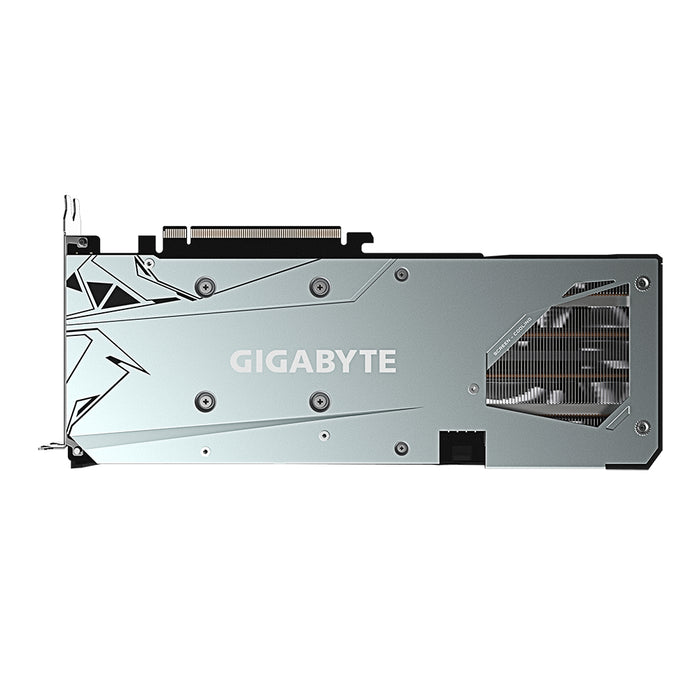

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag
Minimizes input lag so you can game like a champion.
AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.
AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.
AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
Processor
Graphics processor family: AMD
Graphics processor: Radeon RX 7600
Processor frequency: 2355 MHz
Processor boost clock speed: 2755 MHz
Maximum resolution: 7680 x 4320 pixels
Stream processors: 2048
Maximum displays per videocard: 4
Memory
Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit

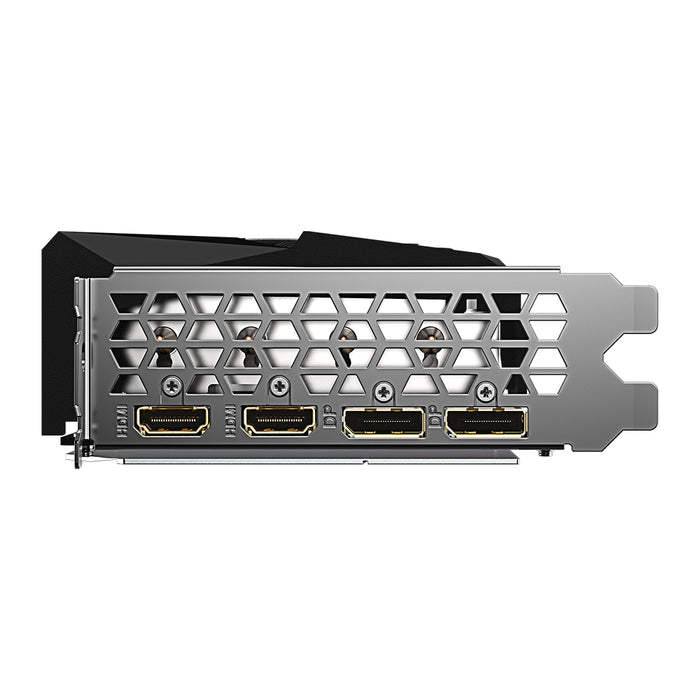

Ports & interfaces
Interface type: PCI Express 4.0
HDMI ports quantity: 2
HDMI version: 2.1a
DisplayPorts quantity: 2
DisplayPort version: 1.4a
USB Type-C ports quantity: 1
Performance
DirectX version: 12 Ultimate
OpenGL version: 4.6
Feature: AMD FreeSync
Design
Cooling type: Active
Cooling technology: GIGABYTE WINDFORCE 3X
Number of fans: 3 fan(s)
Form factor: Full-Height/Full-Length (FH/FL)
Bracket height: Full-Height (FH)
Feature: Illumination
Illumination colour: Multi
Product colour: Black
Power
Minimum system power supply: 550 W
Supplementary power connectors: 1x 8-pin
System requirements
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Weight & dimensions
Length: 287 mm
Depth: 50 mm
Height: 115 mm
Packaging data

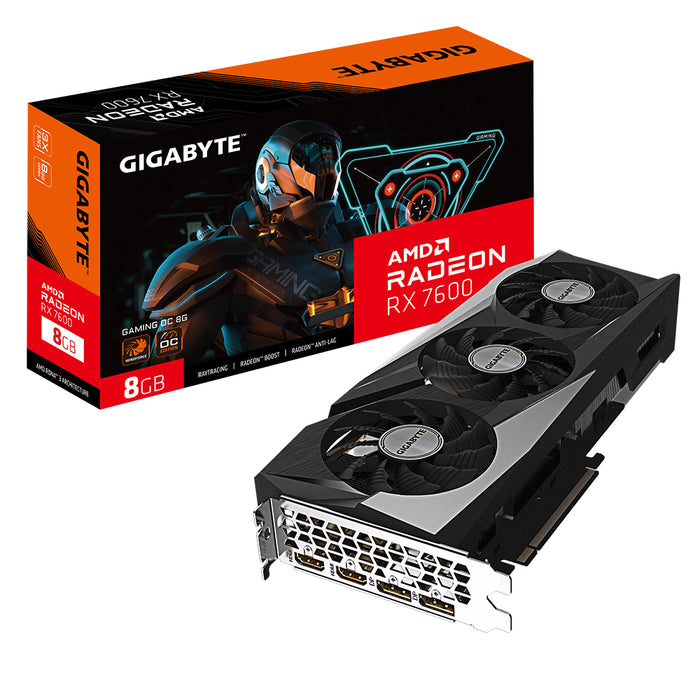

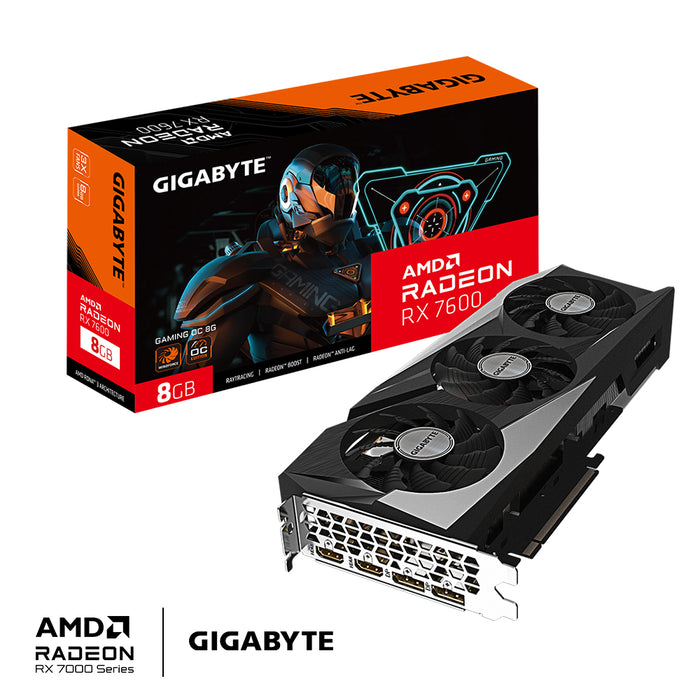

Package type: Box
Packaging content
Feature: User guide

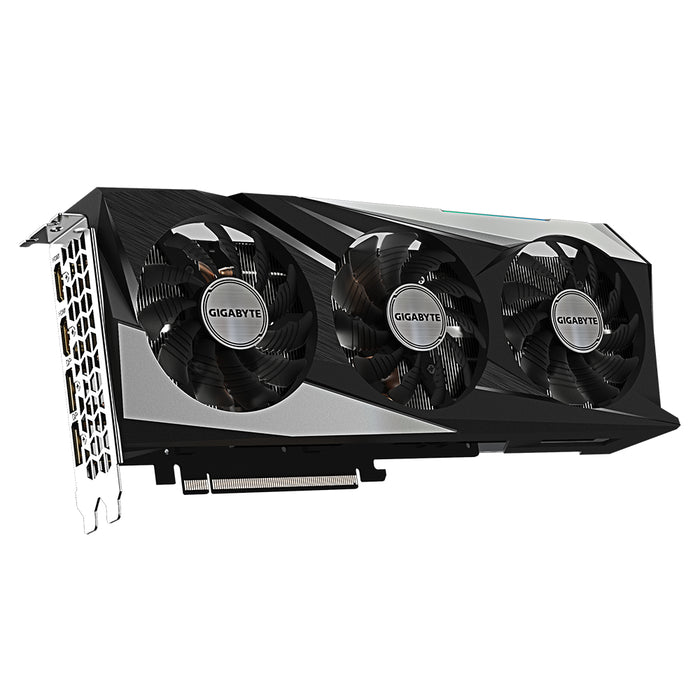

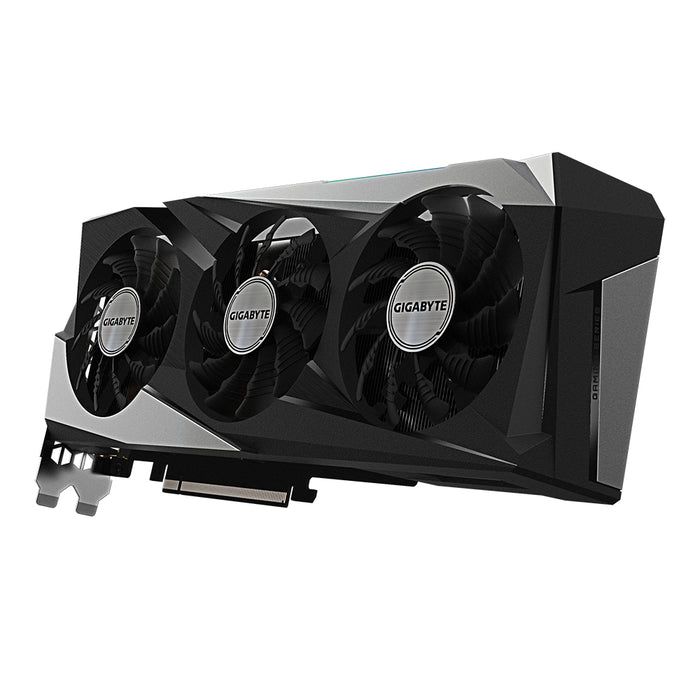

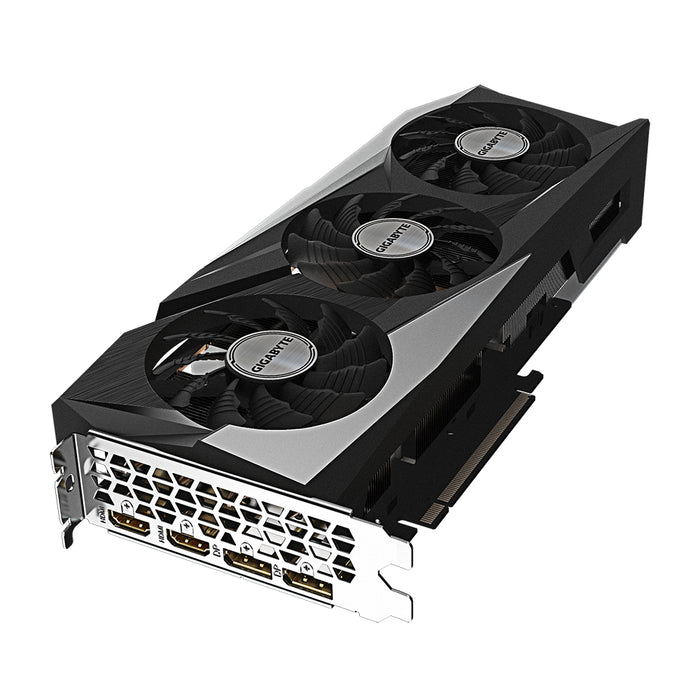

GIGABYTE GAMING Radeon RX 7600 OC 8G. Graphics processor family: AMD, Graphics processor: Radeon RX 7600, Processor frequency: 2355 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Gigabyte
MBR CODE - GV-R76GAMING OC-8GD
EAN - 4719331313425
